Chaori Purification – Your Trusted Expert in Photovoltaic Waste Gas Treatment
Glance over:- Release date:Jun 16, 2025【Big In Small

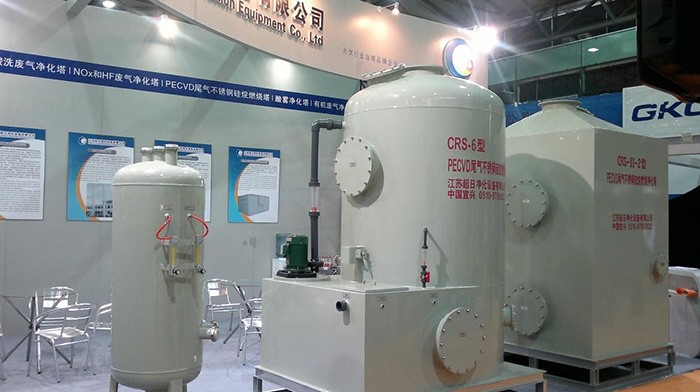

At Yixing Chaori Environmental Protection Equipment Co., Ltd., we specialize in advanced solutions for photovoltaic exhaust gas purification. Our flagship product, the CRS Series Stainless Steel Silane Combustion Tower, is specifically engineered to handle hazardous gases such as silane (SiH?), ammonia (NH?), and other water-soluble exhaust compounds commonly generated in solar cell manufacturing and PECVD (Plasma Enhanced Chemical Vapor Deposition) processes.



Engineered for Performance and Safety

The CRS combustion tower is a fully integrated system that includes:

  • A corrosion-resistant stainless steel housing

  • A high-efficiency combustion chamber

  • A multi-stage gas scrubbing system

  • An automated slag removal unit

This comprehensive design ensures thorough neutralization of reactive gases while prioritizing operational safety and ease of maintenance.



Dual-Air Inlet System for Enhanced Efficiency

To maximize combustion efficiency and minimize gas buildup, the CRS model utilizes a dual-air intake system combining compressed air and fresh air. This innovation boosts internal airflow stability, reduces gas accumulation risk, and improves the overall reliability of the purification process.

Smart Water Circulation & Spray System

Our spray scrubber features a closed-loop water circulation system, reinforced by an automated water refill mechanism. This guarantees consistent scrubbing performance even during high-load operation, ensuring long-term environmental compliance with minimal human intervention.

Built-In Pressure Relief & Nitrogen Safety Integration

The combustion chamber is equipped with an advanced pressure relief mechanism, which automatically activates under sudden internal pressure spikes—protecting both personnel and equipment. In addition, a dedicated nitrogen inlet is incorporated to prevent uncontrolled combustion and further enhance system safety during abnormal conditions or emergency shutdowns.

Effective Dust Collection via Static Pressure Sedimentation

Unlike traditional systems that rely on mechanical filtration alone, the CRS tower adopts a static pressure sedimentation method to collect fine particulate matter. The collected dust is efficiently discharged through a dedicated slag outlet, simplifying maintenance and ensuring cleaner operation.



Why Choose Chaori Purification?

For over a decade, Chaori has remained at the forefront of exhaust gas treatment innovation in the photovoltaic industry. Our systems are trusted by leading solar panel manufacturers for their:

  • High purification efficiency

  • Low operating costs

  • Custom-engineered solutions

  • Turnkey project delivery

We don't just build equipment—we deliver peace of mind.

From project consultation to on-site commissioning, Chaori offers a full-spectrum, turnkey solution tailored to your specific industrial needs.
