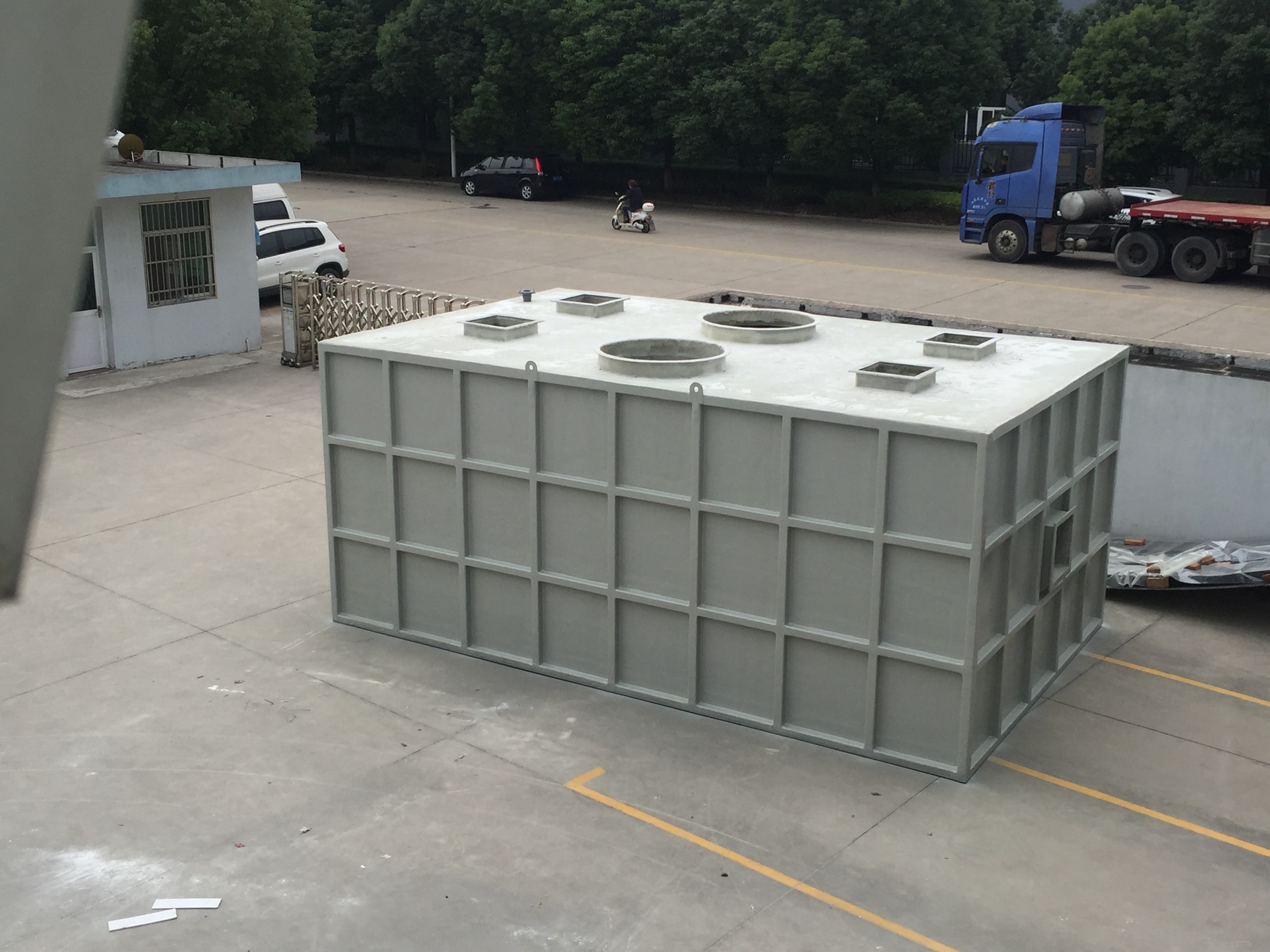

Biological Deodorization Box

The CRSW biological deodorization purification tower uses an advanced biofiltration process to remove industrial odor gases. Microorganisms growing on specialized packing materials degrade odor compounds and convert them into harmless substances such as water and carbon dioxide, achieving efficient and eco-friendly odor control.

Email: jschaori@outlook.com

Whatsapp: 19714819527

Inquire Now
Product details

Technical Advantages

1
Efficient Biofilter Core: Composite packing supports microbial adhesion and growth for high-efficiency biological deodorization.
2
Natural Biodegradation: Microorganisms form biofilm on filler surface, using waste gas components as carbon source to decompose odors into CO?, H?O and minerals.
3
High Deodorization Efficiency: Deodorization rate >90% with minimal secondary pollution, low energy consumption and low operating costs.
4
Stable All-Weather Operation: High load impact resistance with fully automatic operation and minimal maintenance requirements.
5
Corrosion-Resistant Design: High corrosion resistance for extended service life and low pressure loss to reduce energy consumption.
6
Flexible Configuration: Available as soil biofilter, compost biofilter, or biological trickling filter depending on application needs.

Industry Applications

  • 1
    Petrochemical IndustryOdor gas treatment for refining, storage, and processing facilities emitting ammonia, hydrogen sulfide, and organic odors.
  • 2
    Chemical ManufacturingPurification of waste gas from chemical synthesis, solvent handling, and production processes with complex odor components.
  • 3
    Light Industry and PrintingEmissions control for printing, dyeing, and light manufacturing plants generating formaldehyde and solvent-based odors.
  • 4
    Pharmaceutical ProductionOdor management for pharmaceutical synthesis, fermentation, and extraction processes with biological waste gases.
  • 5
    Steel and MachineryControl of odor emissions from metal processing, heat treatment, and machinery manufacturing operations.
  • 6
    Electronics and ElectroplatingOdor control for electronics factories and electroplating facilities emitting acid mist and organic volatile odors.
  • 7
    Food ProcessingBiological deodorization for food production, fermentation, and processing plants with ammonia and sulfide emissions.
  • 8
    Metallurgical SectorTreatment of high-temperature process odors and waste gases from smelting and metal refining operations.
  • 9
    General Industrial Odor ControlApplicable wherever ammonia, hydrogen sulfide, formaldehyde, and other odor waste gases are generated.

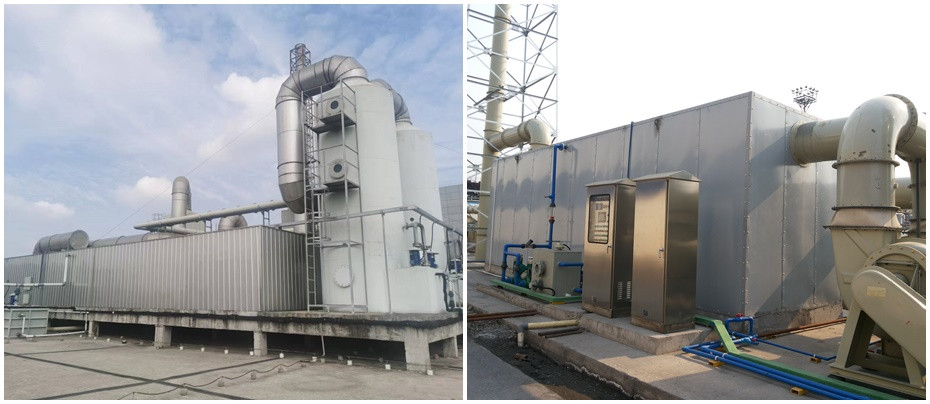

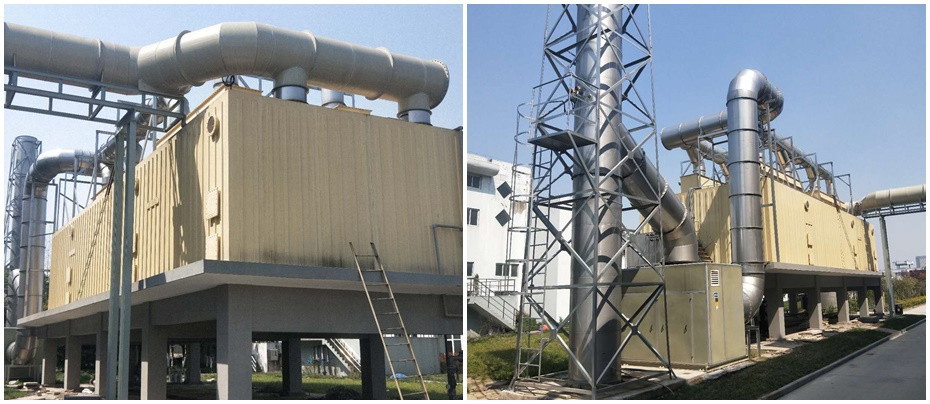

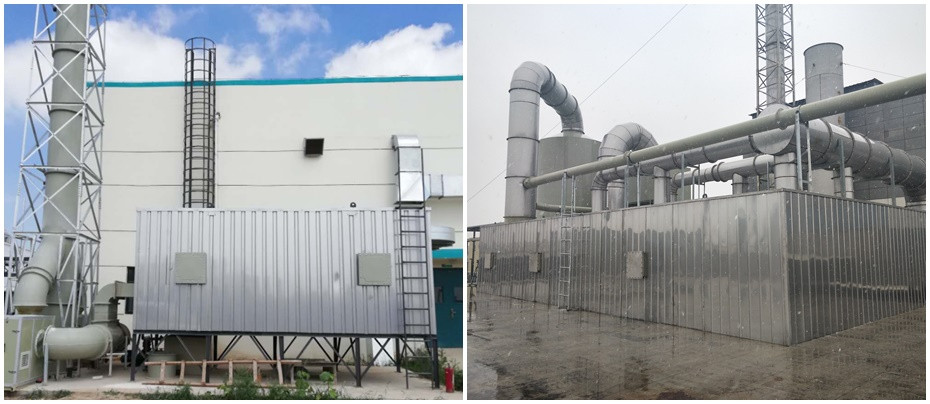

Wet Scrubber Cases

Technical Parameters

Model Air Volume (m³/h) Resistance (Pa) Size L×W×H (mm) Filler (m³) Inlet Outlet
3# 3000 500 3000×3000×2500 9 DN300 DN300
5# 5000 500 4500×3000×2500 14 DN400 DN400
7.5# 7500 500 6000×3000×2500 18 DN500 DN500
10# 10000 500 9000×3000×2500 27 DN600 DN600
15# 15000 500 12500×3000×3000 57 DN700 DN700
17.5# 17500 500 8000×6000×3000 72 DN800 DN800
20# 20000 500 10000×6000×3000 90 DN800 DN800
25# 25000 500 12000×6000×3000 108 DN900 DN900
30# 30000 500 14000×6000×3000 126 DN1000 DN1000
35# 35000 500 16000×6000×3000 144 DN1100 DN1100

Working Principle

1
Adsorption and Dissolution
Odor gas contacts water in the biofilter and dissolves into the liquid phase, preparing pollutants for biological treatment.
→
2
Biofilm Transfer
Dissolved odor components are absorbed and transferred to microbial cells attached to the composite filler biofilm.
→
3
Biodegradation
Microorganisms metabolize odorous substances, decomposing them into harmless CO2, H2O and minerals—achieving complete odor removal.
System Configuration Options: Depending on biological filler characteristics and structural requirements, the purification device can be configured as:
  • Soil Biofilter- Natural media for low-concentration odor treatment
  • Compost Biofilter- Organic filler for biodegradable waste gases
  • Biological Trickling Filter- Inert filler with specialized bacteria inoculation for high-efficiency industrial applications

Why Choose Us

With over 20 years of experience in industrial exhaust solutions, Chaori provides reliable biological deodorization systems combining advanced biofilter technology with robust engineering design.

1Engineering and Manufacturing: 20+ years experience in biological deodorization system design, fabrication, and installation.
2Facilities: 30,000 m² production area ensuring timely delivery of custom biofilter solutions.
3Quality and Certification: ISO 9001:2015 certified systems guaranteeing performance, safety, and environmental compliance.
4Global Support: Biological deodorization systems meeting international emission standards, with lifetime consultation and full project support.

Contact us today to discuss a custom biological deodorization solution for your industrial odor challenges.
