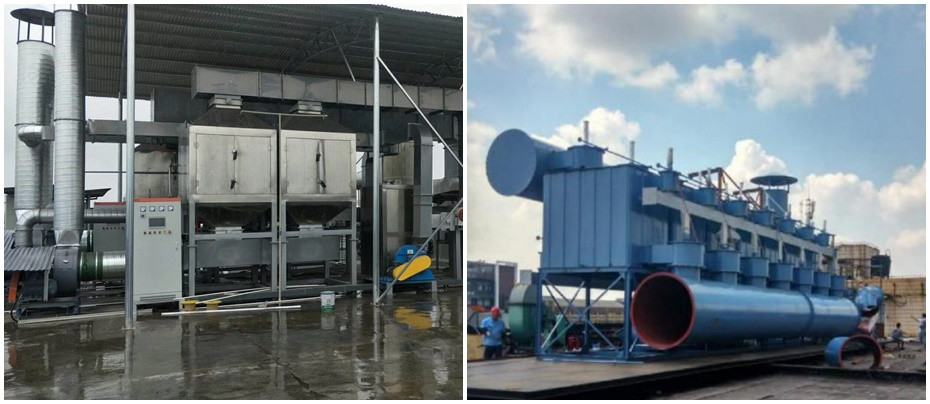

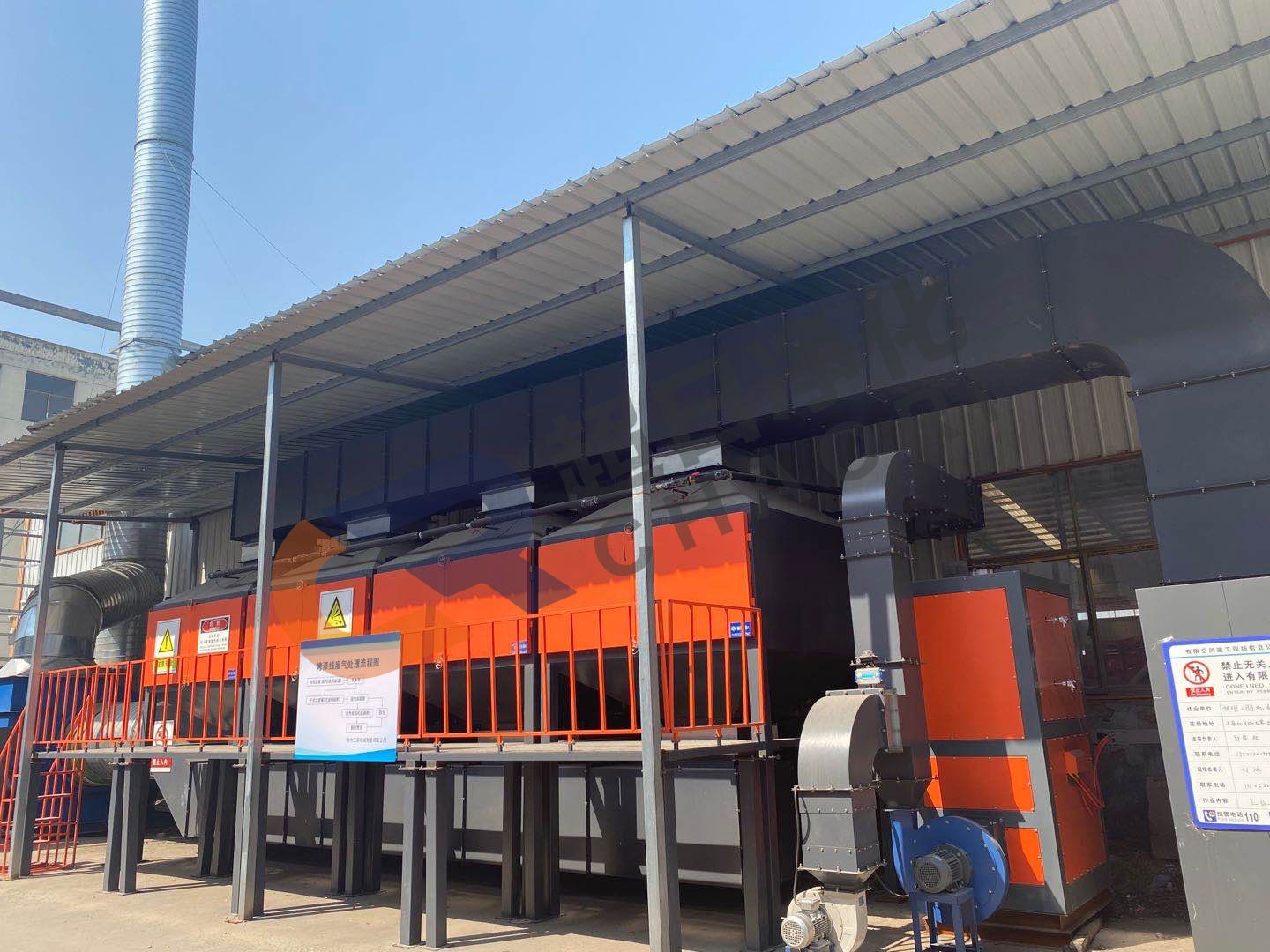

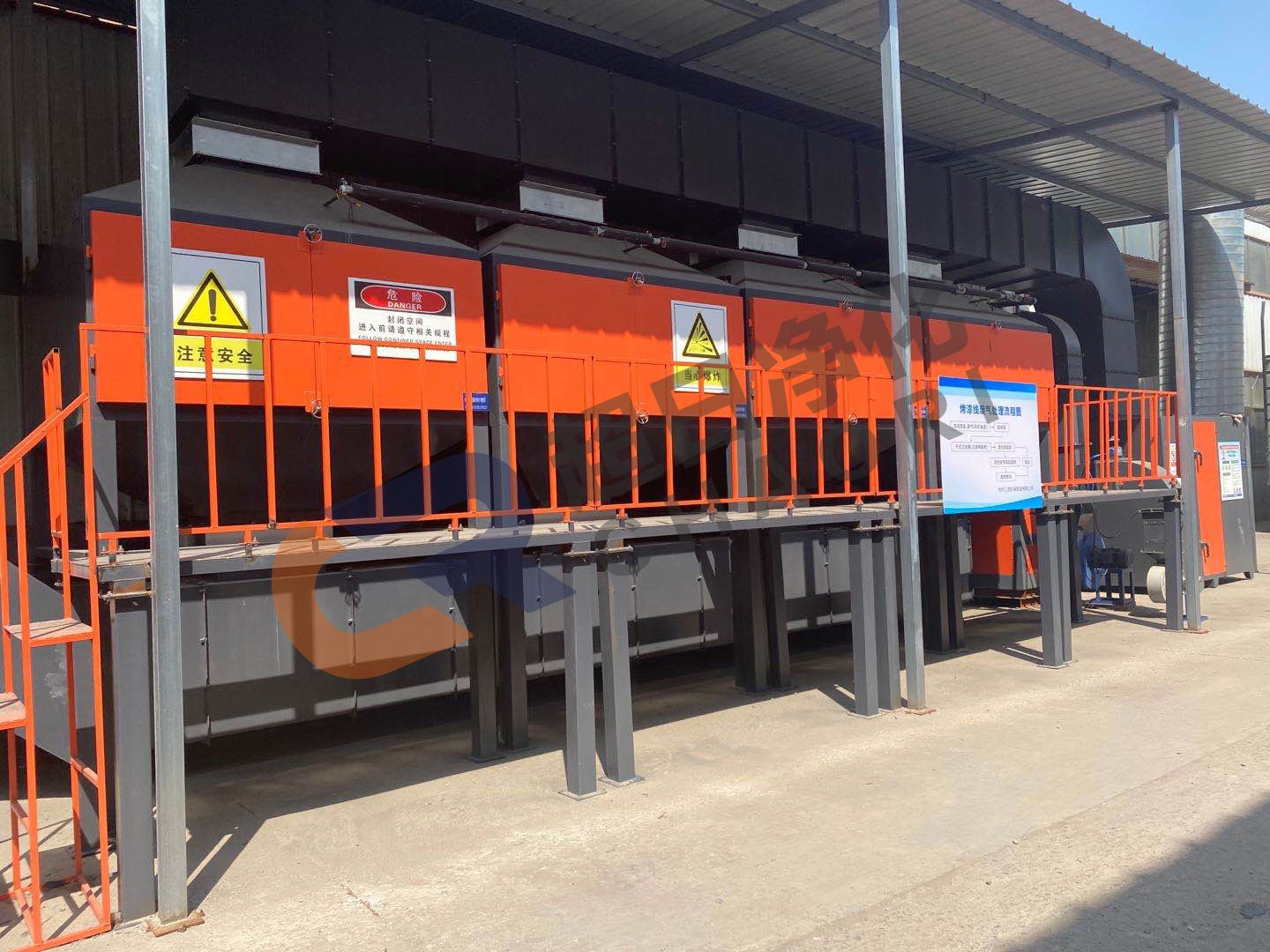

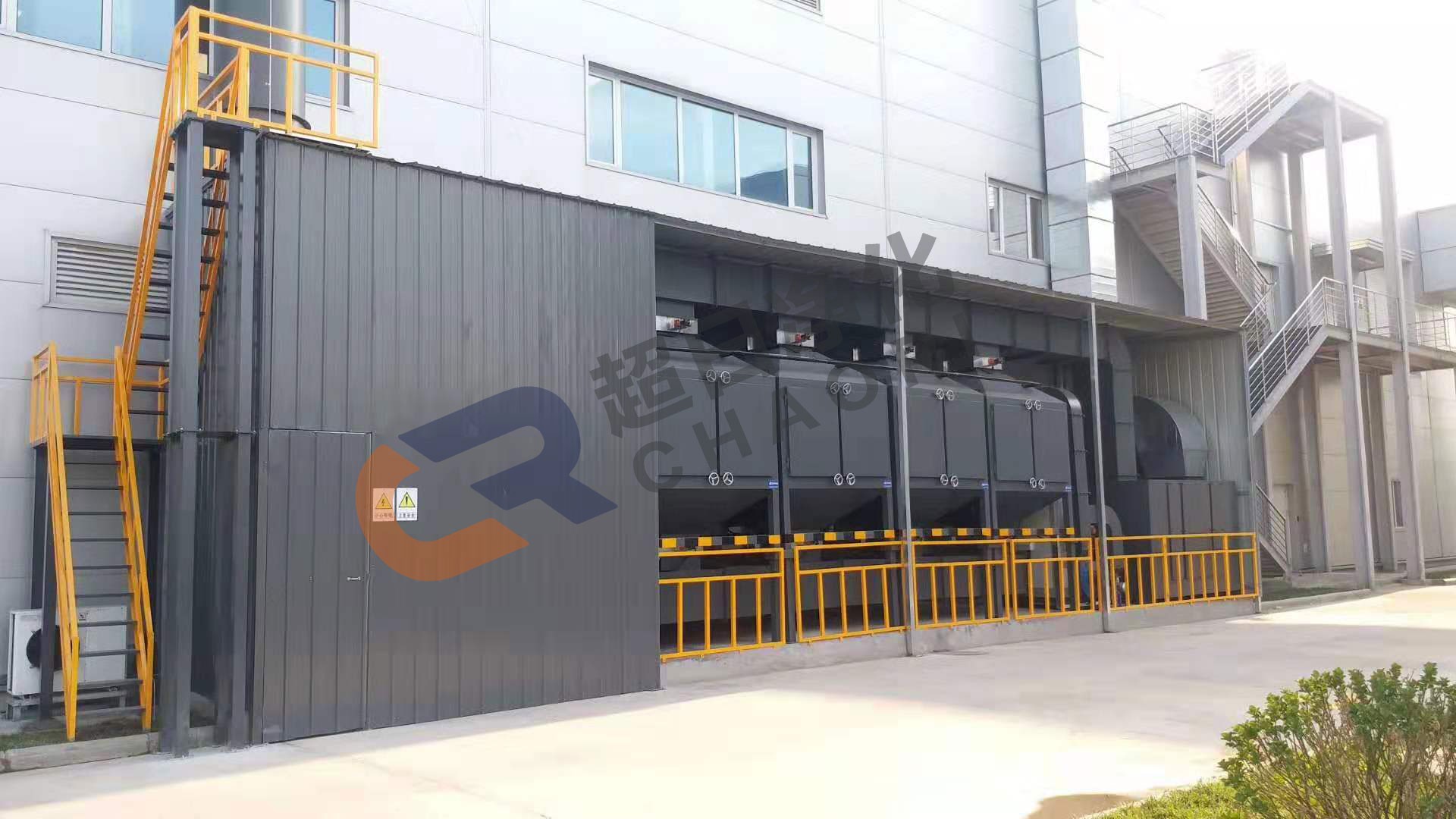

Regenerative catalytic oxidizer (RCO)

Under the action of the catalyst, the active ingredient of the catalyst can convert the organic matter into CO2 and H2O at a relatively low temperature (280~320℃) and a short time (0.1~0.2s), forming a flameless combustion.

Overview

Under the action of the catalyst, the active ingredient of the catalyst can convert the organic matter into CO2 and H2O at a relatively low temperature (280~320℃) and a short time (0.1~0.2s), forming a flameless combustion.

hermal storage catalytic oxidation technology is a non-stationary operation technology developed on the basis of traditional catalytic oxidation method. It is a new technology that integrates two separate processes of catalytic combustion and waste gas preheating in traditional catalytic combustion technology. Equipment integration, high heat recovery, natural operating fuel concentration is low, so there is no need to supplement combustion under the condition of fuel concentration as low as about 1000mg/m3, which can greatly reduce operating costs. At higher concentrations, part of the heat can be removed from it to produce by-product steam for production.

Regenerative catalytic oxidizer (RCO)

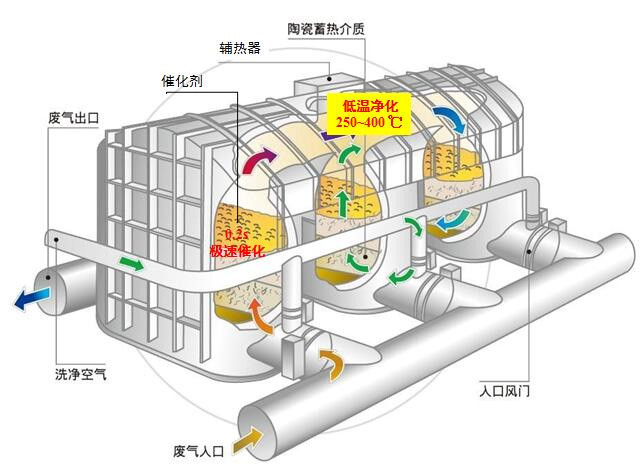

Working principle

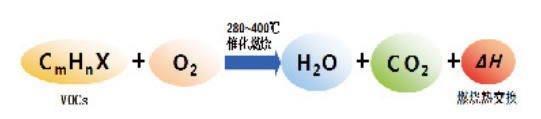

Usually VOCs complete oxidation (direct combustion or thermal combustion) requires a higher temperature and a longer residence time, taking benzene as an example, if there is no catalyst, in order to achieve the purpose of complete oxidation, the temperature needs to be above 800 ° C, the tangent residence time of at least 1~2s, with the participation of the catalyst, the complete oxidation temperature and residence time decreased significantly. Only 250~400℃ and 0.1~0.2s are needed, which fully shows the superiority of catalytic combustion method.

Regenerative catalytic oxidizer (RCO)

Features

1. Low operating costs, no need to consume a lot of electricity or gas, saving operating costs;

2. No secondary pollutants such as nitrogen oxides (NOx);

3. Low investment; Fully automatic control, ready to use; Resistant to impact load, not easily affected by pollutant concentration and temperature changes;

4. High efficiency heat recovery, heat recovery ≧95%;

5. High safety, purification efficiency of more than 98%.

6. The catalyst has high catalytic effect, improves purification efficiency, and reduces input and operating costs.

Regenerative catalytic oxidizer (RCO)

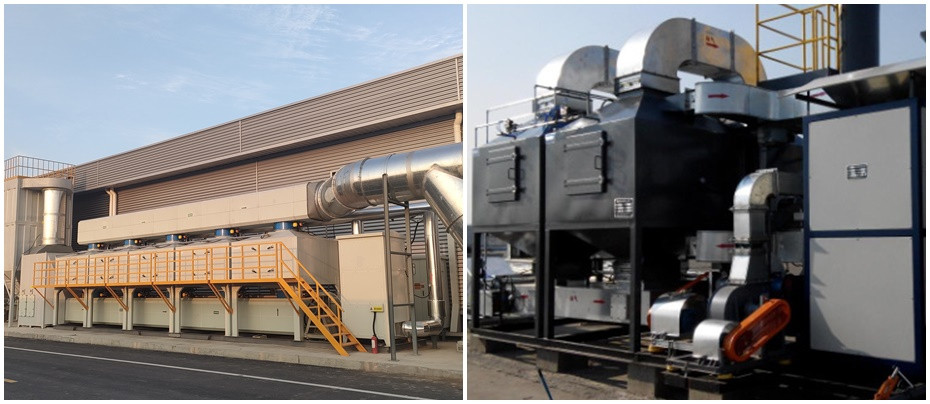

Application industry

Petroleum, chemical industry, painting, painting, furniture, wire and cable, injection molding, printing, rubber, electronics and integrated circuits and other high-concentration organic waste gas industry.

Regenerative catalytic oxidizer (RCO)

Specification and parameter table

Type number Processing flow
(m3/h)
Equipment size
(mm)
Heat transfer area
(m2)
Heating power
(kw)
CRCO-005 500 2130×1025×1930 12 33
CRCO-010 1000 2130×1025×2550 24 40
CRCO-020 2000 2230×1175×2560 48 72
CRCO-030 3000 2665×1175×2560 72 90
CRCO-050 30000 3165×1280×2860 120 110
CRCO-100 10000 3865×1360×3060 180 132
CRCO-200 20000 4200×1850×3560 320 196

I want to customize:Regenerative catalytic oxidizer (RCO)

  • *Contact person:
  • Company name:
  • *Email:
  • Purchase intention:
  • *Verification code: Verification Code

Related ProductsRelated Products

Activated carbon air filter exhaust gas absorption tower

Activated carbon air filter exhaust gas absorption tower

The exhaust gas is powered by the fan, and the negative pressure enters the activated carbon adsorpt...

Learn More

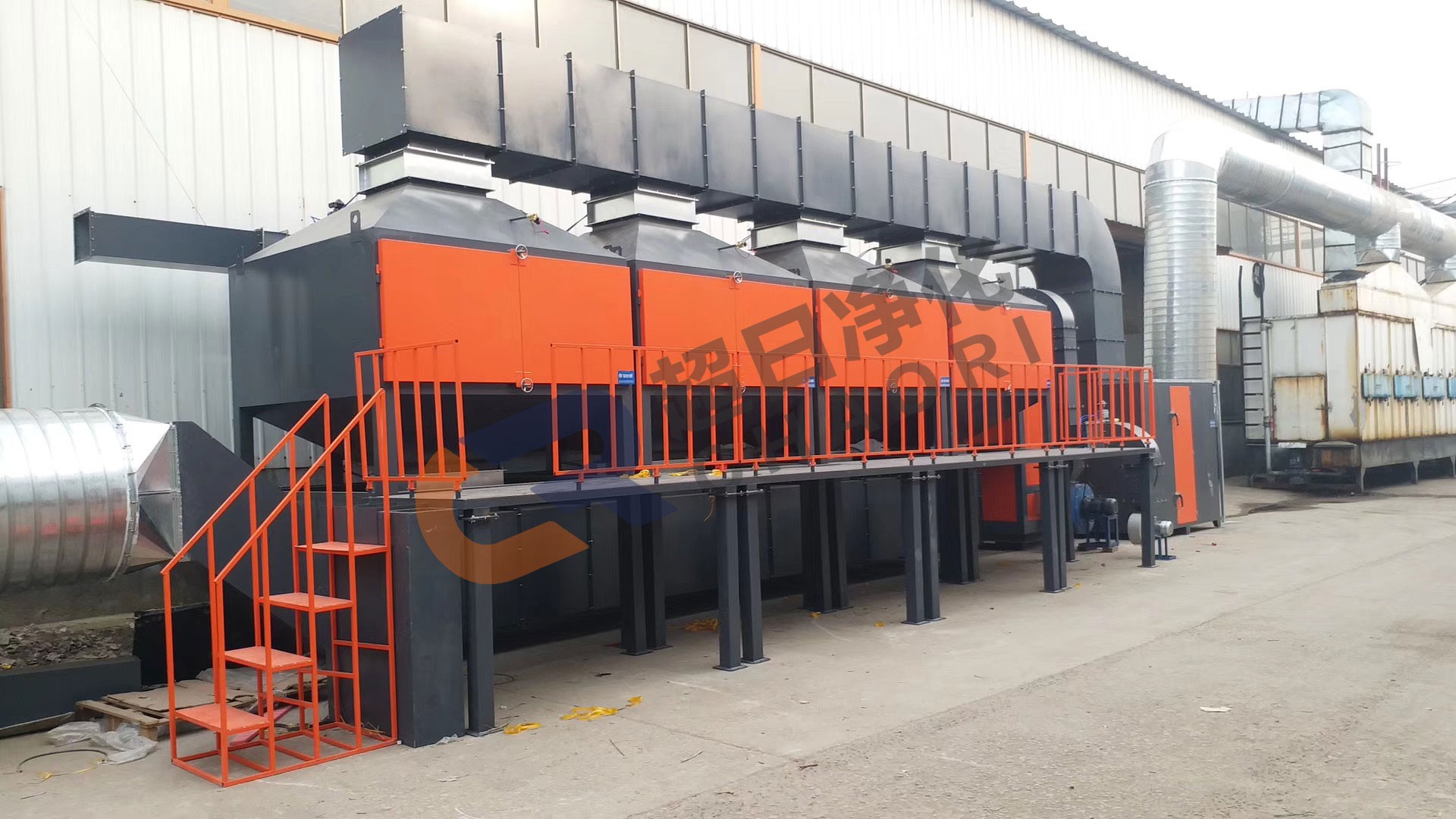

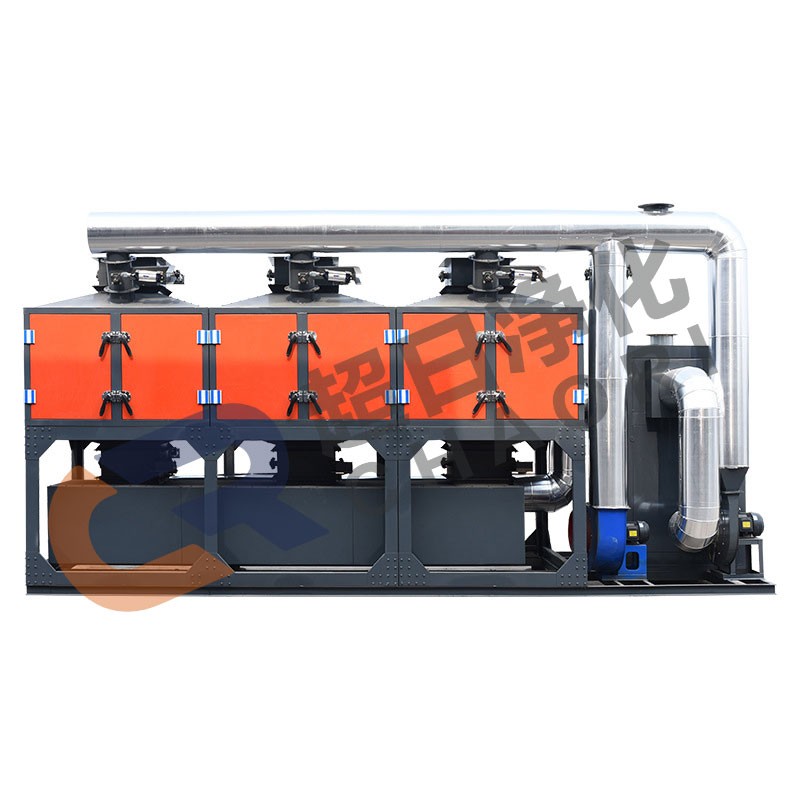

Regenerative catalytic oxidizer (RCO)

Regenerative catalytic oxidizer (RCO)

Under the action of the catalyst, the active ingredient of the catalyst can convert the organic matt...

Learn More

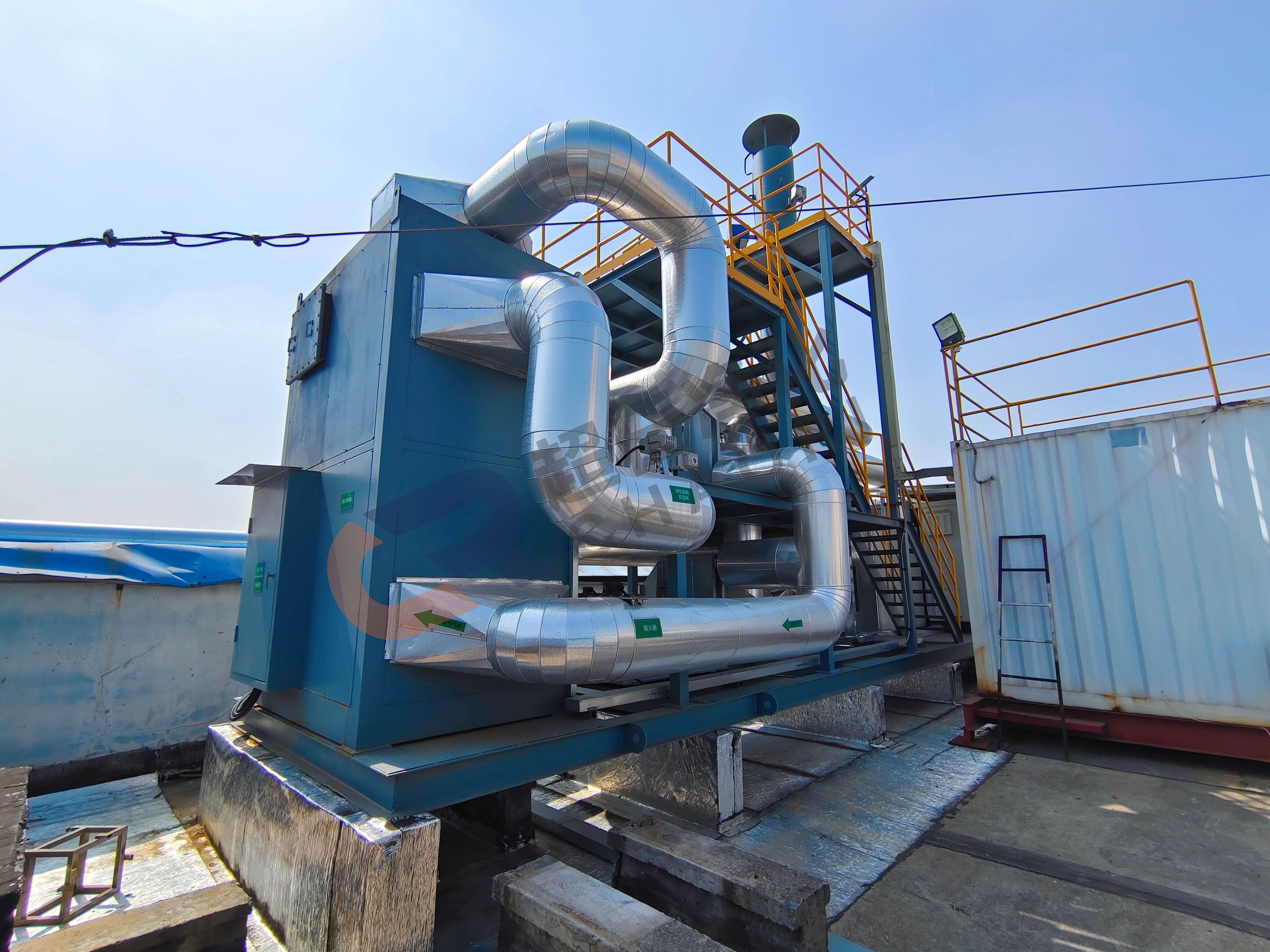

Regenerative Thermal Oxidizer (RTO)
